The STXL from Dotworkz is the ultimate choice for customers needing robust protection for their surveillance equipment in extreme environments. With its IP66 and NEMA 4X ingress protection, the STXL ensures your cameras are safe from water, dust, and vandalism. The integrated active cooling and heating systems maintain optimal operating temperatures, even in harsh conditions. Its spacious design accommodates large form factor cameras and long-range lenses, making it ideal for critical infrastructure, remote monitoring, and high-security applications. Choose the STXL for unparalleled durability and performance.
Harsh Environment Active Cooling with Long Range Lens Compatibility
STXL Series
The Dotworkz STXL-CD is an engineered outdoor housing system that is designed to house & protect virtually all indoor box & brick camera models, especially Large Form Factor Cameras with Large High Zoom Lenses, to be turned into a complete rugged outdoor system solution.
This Extra Large housing solution is designed for a wide array of harsh & challenging environments. IP66 NEMA 4X ingress protection of housing, provides the highest levels of protection from water, dust, marine, and vandal abuse, while providing extended temperature operating range of these large form factor camera & lens combinations, by the Dotworkz Active Cooling & Heating systems integrated into this housing system.

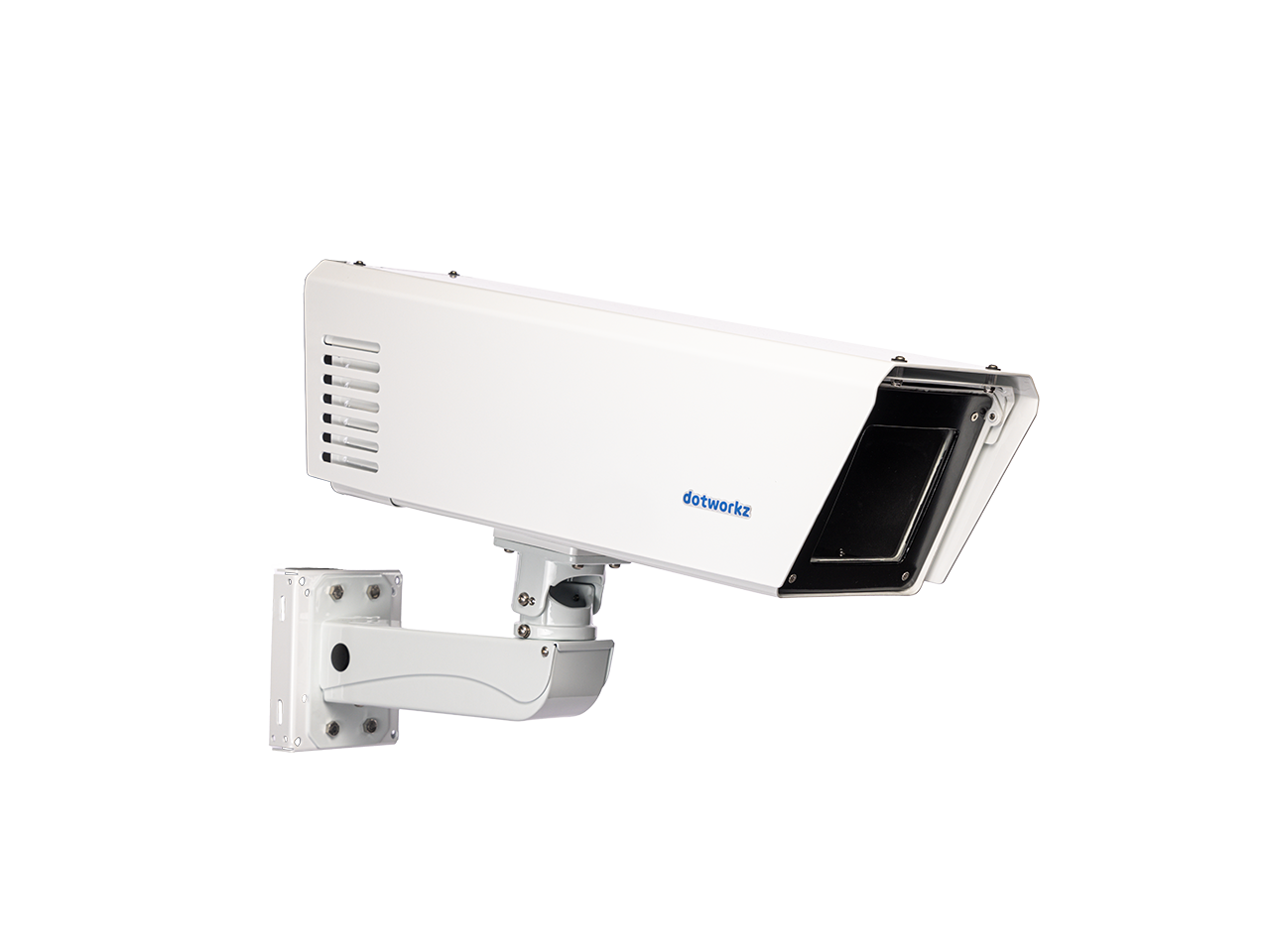

Included is the Heavy Duty Stainless Steel wall mount arm that allows for quick, simple, & secure mounting of housing into the most common installation conditions. Other optional mounts available for a broad array of deployment mounting options.
Heavy Duty Construction
Suitable for Outdoor Applications Including Harsh Remote, Industrial & Marine Environments
Fully Sealed Camera Compartment Built to IP66 Level Protection
Actively Cooled / Active Heating Integrated
18˚ Angled Glass Window for Optimal Reduction of Reflective Artifacts
Ideal for Conspicuous Deterrence Applications
Large Form Factor for Broad Range of Long Range High Zoom Lenses
Room for Encoders, Modems, Radios, and Recorders

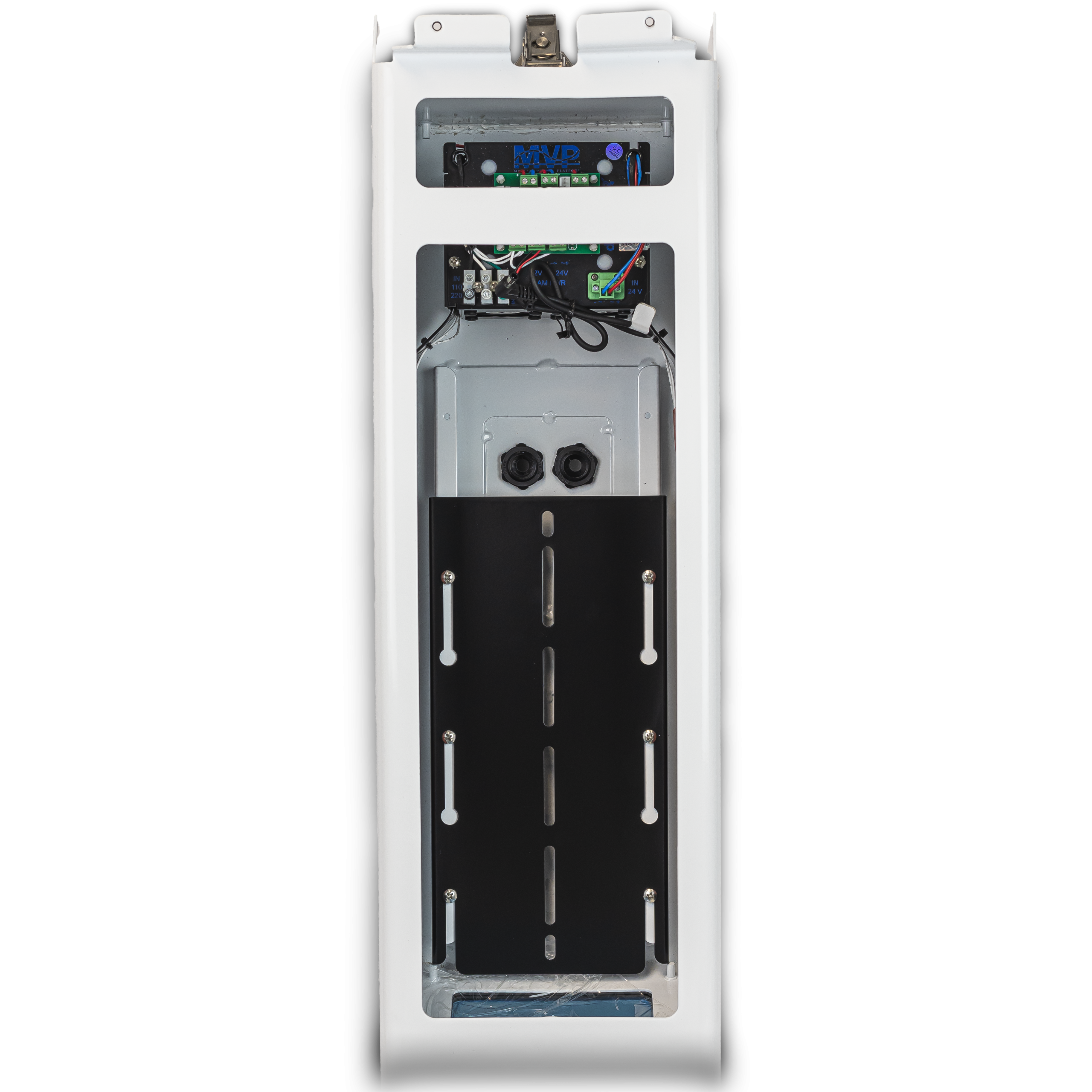

1,218 cubic inches of internal usable space
Product Specs Sheet
Learn more about STXL's innovative features such as its climate-controlled housing and advanced cooling systems; and flexible power options for an easy installation process.
Each D-Series Product offers versatile and customizable climate control options, designed to thrive in any weather condition.
Cooldome
Designed to thrive in hot climates such as deserts or extremely sunny area
Tornado
Designed for hot and humid climates such as ocean coastlines
Ring of Fire
Designed to endure extremely cold climate such as artic or mountainous areas
Applications
Outdoor Harsh Environments to Protect Thermally Sensitive Cameras & Lenses
Large Form Factor Lens & Brick Camera Combinations
4K Ready Camera Systems
Broadcast, Video Security, Industrial Process, Citywide, & Remote Applications
Ideal for Stadiums, Traffic Safety & Traffic Management, Border Security, etc.
Extreme Sensitive Low Light Camera Systems
Critical Infrastructure & Long Distant Video Security Applications
Compatible with Many Industry Available PAN TILT Motors
OEM & ODM Applications
Adaptable to Large Thermal Imaging Camera Systems
Customizable Lens Window Material Options
Stainless Steel Custom Material Model Options Available for Ballistic Resistance
Also Available in BASE model & Other Extreme Environment Protective Models
Specifications
Material: 11 gg Aluminum w/ White Powder Coat Paint Finish
Fully Insulated Black Foam / Foil Interior
Window: 5.0″ x 5.0″ Aperture: Silicate Glass w/ AR Coating

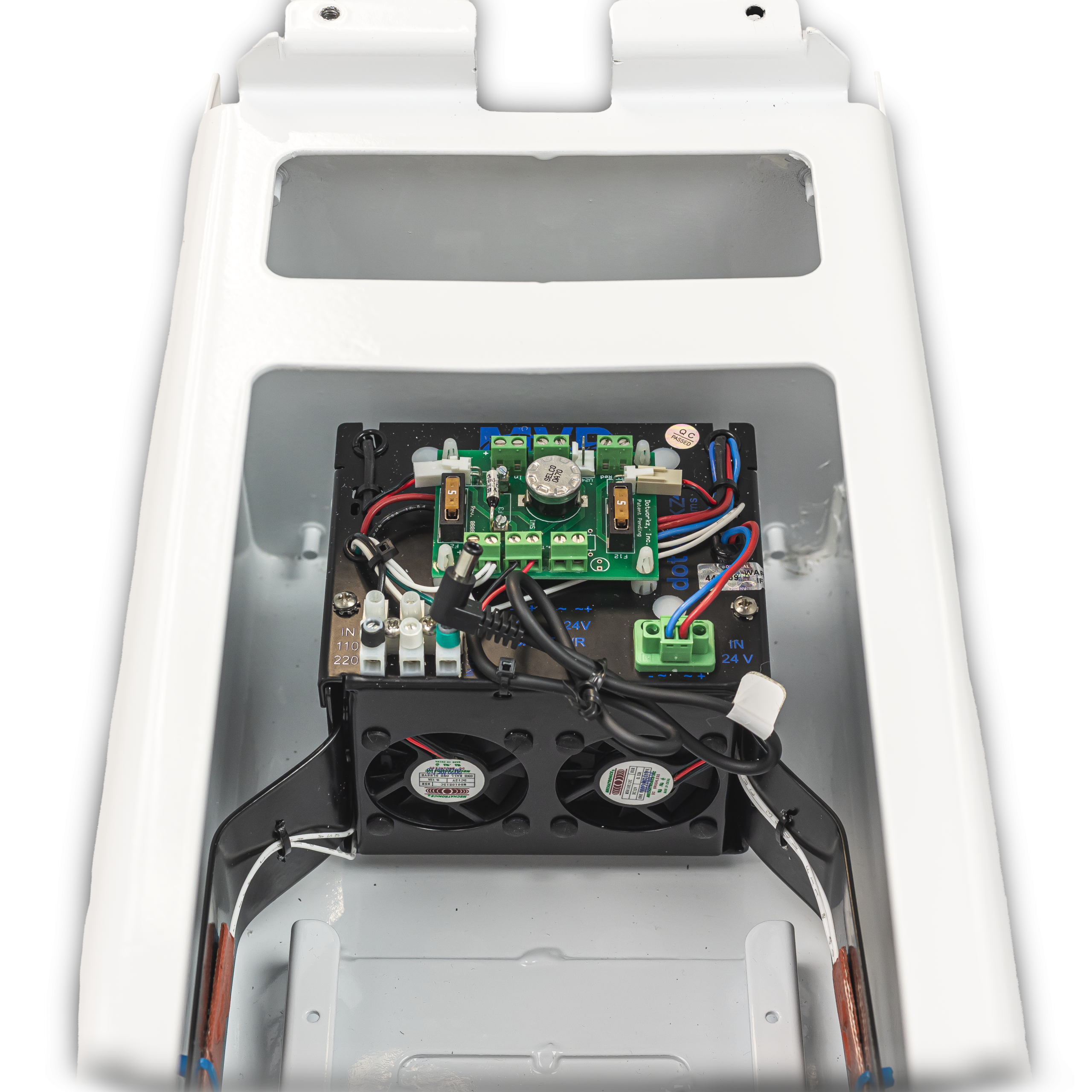

ACTIVE COOLING: 12VDC based 400 BTU Solid State Cooler
Heater: 33 W Heater Integrated w/ 40 CFM Blower System
Heating & Cooling Are Independently Thermostat Controlled
12 VDC Pass Thru Power Available to Camera
INTERNAL USABLE (HxWxL): 6.0″ x 7.0″ x 16.5 / 152 mm x 178 mm x 420 mm
EXTERNAL OVERALL (HxWxL): 8.9″ x 8.3″ x 27.5″ (Housing Only without Mt Arm)
STXL-CD (Enclosure Only weight; without wall mount arm or External P/S): 16.5 lbs / 7.5 kg
STXL-CD with Included S/S Wall Mt Arm & Outdoor P/S: 26.5 lbs / 12 kg
Operating Humidity: 10-100% RH (condensing)
System Maximum Operating Temperature Range: -20 to +60C
Applications
Outdoor Harsh Environments to Protect Thermally Sensitive Cameras & Lenses
Large Form Factor Lens & Brick Camera Combinations
4K Ready Camera Systems
Broadcast, Video Security, Industrial Process, Citywide, & Remote Applications
Ideal for Stadiums, Traffic Safety & Traffic Management, Border Security, etc.
Extreme Sensitive Low Light Camera Systems
Critical Infrastructure & Long Distant Video Security Applications
Compatible with Many Industry Available PAN TILT Motors
OEM & ODM Applications
Adaptable to Large Thermal Imaging Camera Systems
Customizable Lens Window Material Options
Stainless Steel Custom Material Model Options Available for Ballistic Resistance
Also Available in BASE model & Other Extreme Environment Protective Models
Specifications
Material: 11 gg Aluminum w/ White Powder Coat Paint Finish
Fully Insulated Black Foam / Foil Interior
Window: 5.0″ x 5.0″ Aperture: Silicate Glass w/ AR Coating
ACTIVE COOLING: 12VDC based 400 BTU Solid State Cooler
Heater: 33 W Heater Integrated w/ 40 CFM Blower System
Heating & Cooling Are Independently Thermostat Controlled
12 VDC Pass Thru Power Available to Camera
INTERNAL USABLE (HxWxL): 6.0″ x 7.0″ x 16.5 / 152 mm x 178 mm x 420 mm
EXTERNAL OVERALL (HxWxL): 8.9″ x 8.3″ x 27.5″ (Housing Only without Mt Arm)
STXL-CD (Enclosure Only weight; without wall mount arm or External P/S): 16.5 lbs / 7.5 kg
STXL-CD with Included S/S Wall Mt Arm & Outdoor P/S: 26.5 lbs / 12 kg
Operating Humidity: 10-100% RH (condensing)
System Maximum Operating Temperature Range: -20 to +60C
