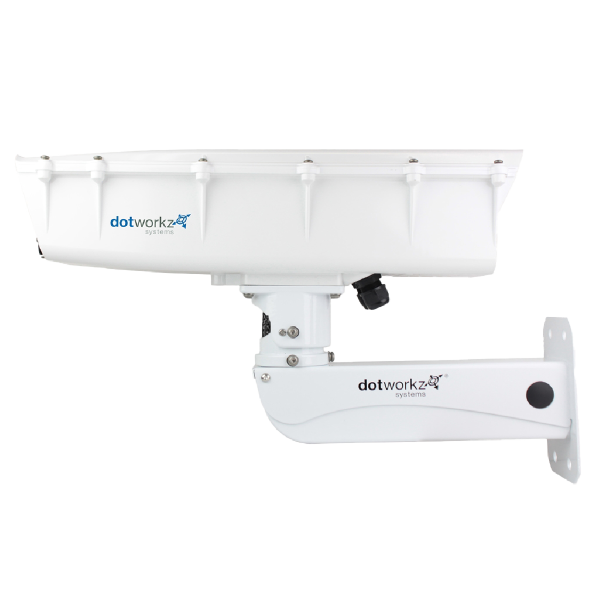

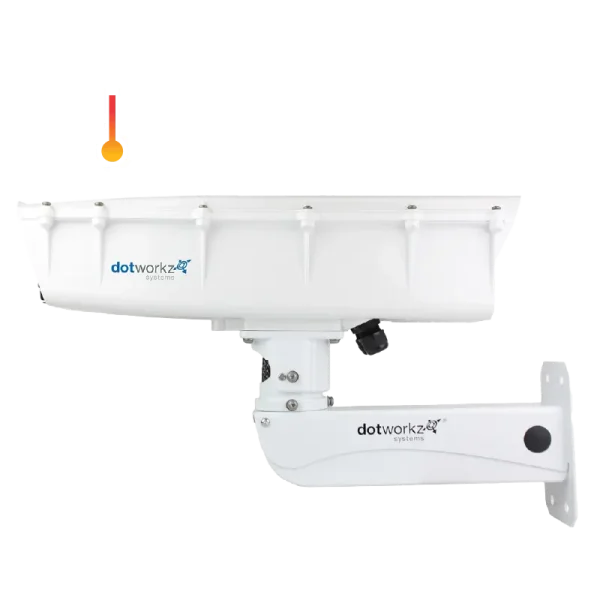

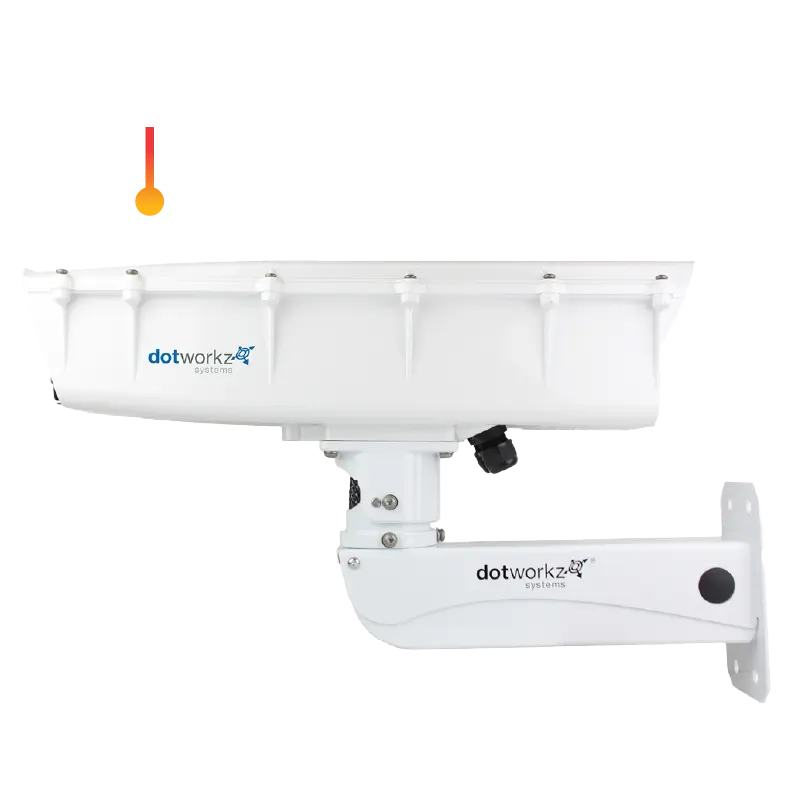

S-Type™ Ring of Fire™
Full Camera Housing De-Icing System for Extreme Cold Environments
Full-Housing Heating | Zero Ice Buildup | 24/7 Operational ClarityThe Dotworkz S-Type™ Ring of Fire™ is the industry's most advanced cold-weather security camera housing, specifically engineered for extreme sub-zero environments, where traditional enclosures fail. This rugged, IP68-rated camera housing features Dotworkz's patented Ring of Fire™ de-icing system, which actively heats the entire housing, not just the lens, ensuring your camera stays clear, operational, and protected.
Complete Camera De-Icing System
Unlike standard heated camera mounts or basic lens warmers, the Ring of Fire™ delivers full-enclosure thermal protection, eliminating ice, snow, and condensation that can freeze over the lens or internal electronics.This powerful heating system prevents rime ice from refreezing on the viewing window, keeping your video footage sharp and uninterrupted, even during blizzards, polar conditions, or extended cold snaps.
Engineered For The Harshest Conditions
- IP68 Waterproof and heavy duty Housing
- Full-Housing Heating System – Not just lens warmers
- Made from Non-Conductive Thermal Plastic – Prevents ice build up and heat loss
- Marine-Grade Stainless Steel Hardware – Corrosion-resistant in salt, snow, and chemical exposure
- Supports Axis®, Hanwha®, Hikvision®, and other fixed camera systems

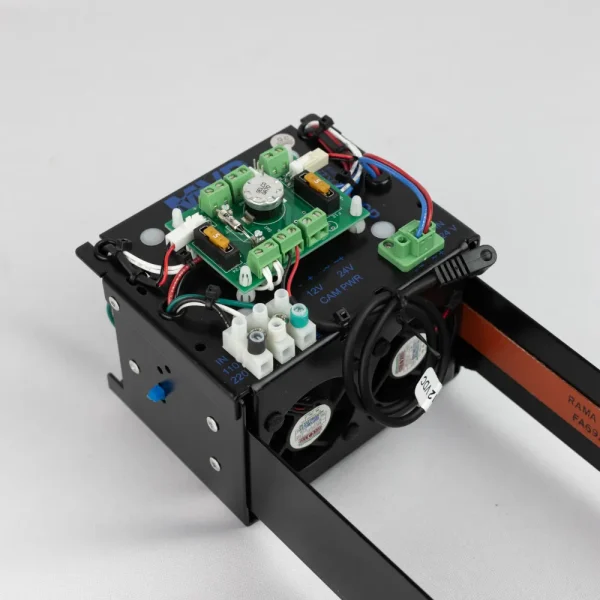

- Multi-Volt Platform (MVP) – Compatible with 12V, 24V, or custom solar/off-grid power
Built for These Environments:
- Arctic and sub-zero climate surveillance
- Drill rigs and mining sites
- Border security in snowbound regions
- Energy and utility infrastructure in cold climates
- Highway, traffic, and transportation monitoring
- Ski resorts, mountaintop stations, and airports
Key Benefits:
- Maintains clear camera visibility in freezing weather
- Protects internal electronics and power systems
- Keeps camera operational in -60°F and below
- Prevents costly downtime, fogging, and re-freezing
- Trusted by utility providers, transportation agencies, and military installations worldwide
When Other Housings Freeze, Ring of Fire™ Stays On
Whether you're monitoring remote pipelines, drilling rigs, or high-altitude sites, the S-Type™ Ring of Fire™ is your best choice for extreme cold weather camera housing. Protect your camera system. Keep your vision clear. And stay online, no matter how cold it gets.
| Feature | Details |
|---|
| Model Name | S-Type™ Ring of Fire™ Heated Camera Housing |

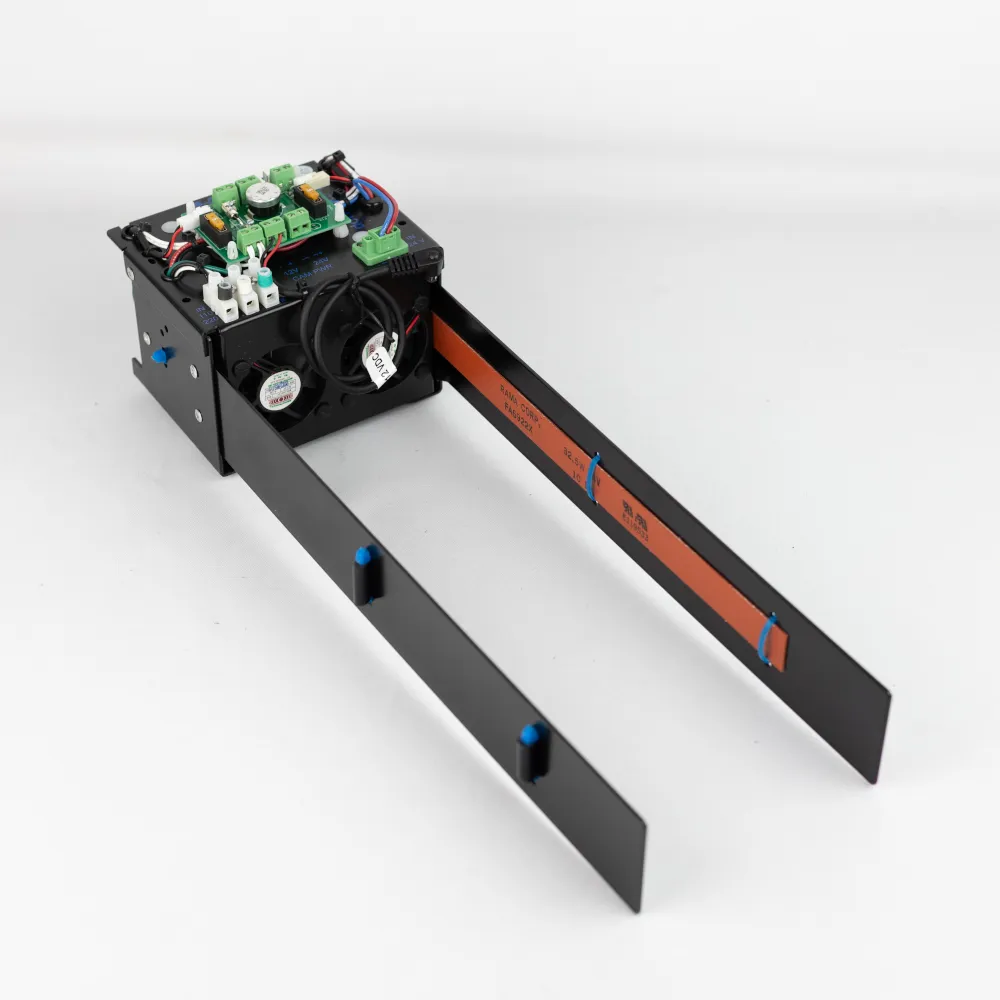

| Heating System | Patented Ring of Fire™ full-housing thermal regulation |
| Heating Output | 60 Watts (high-output de-icing system) |
| De-Icing Coverage | Heats entire housing: lens window, camera chamber, and internal components |
| Material | Non-conductive, high-impact thermal plastic |
| Hardware | Marine-grade stainless steel (corrosion-resistant) |
| Sealing Rating | IP68 – fully waterproof and dustproof |
| Impact Resistance | IK10 – high vandal and weather resistance |
| Operating Temperature Range | -60°F to 167°F (-40°C to 75°C) |
| Camera Compatibility | Complete list of camera compatibility |
