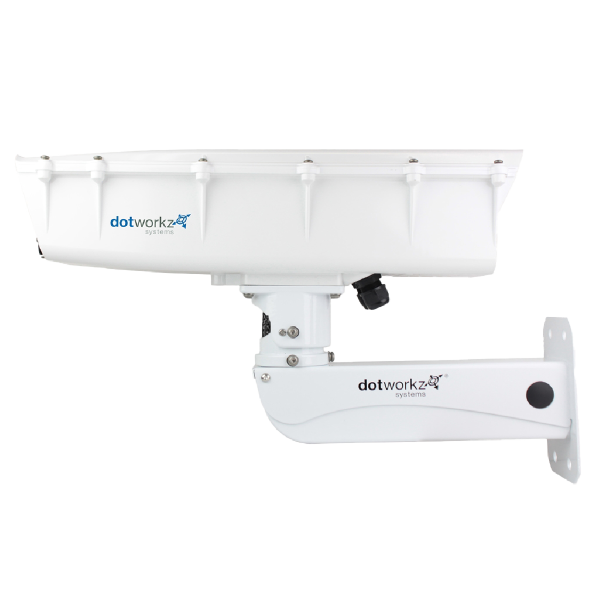

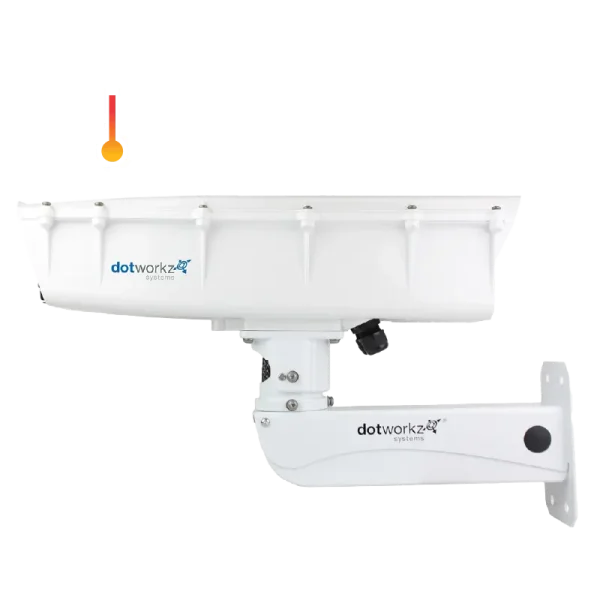

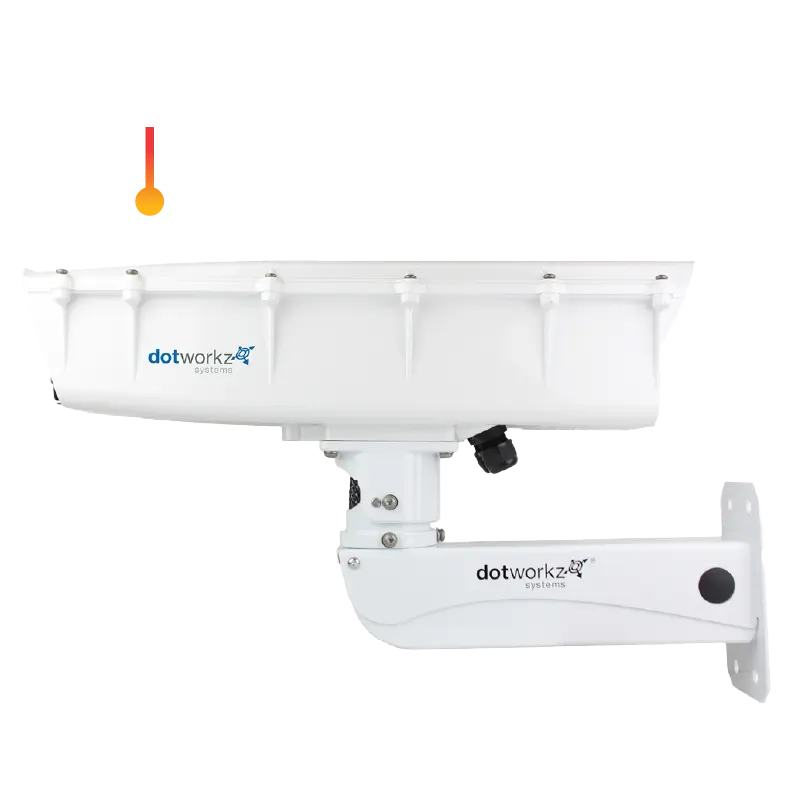

S-Type™ Ring of Fire™

De-Icing

Extreme Cold Weather Camera Enclosure

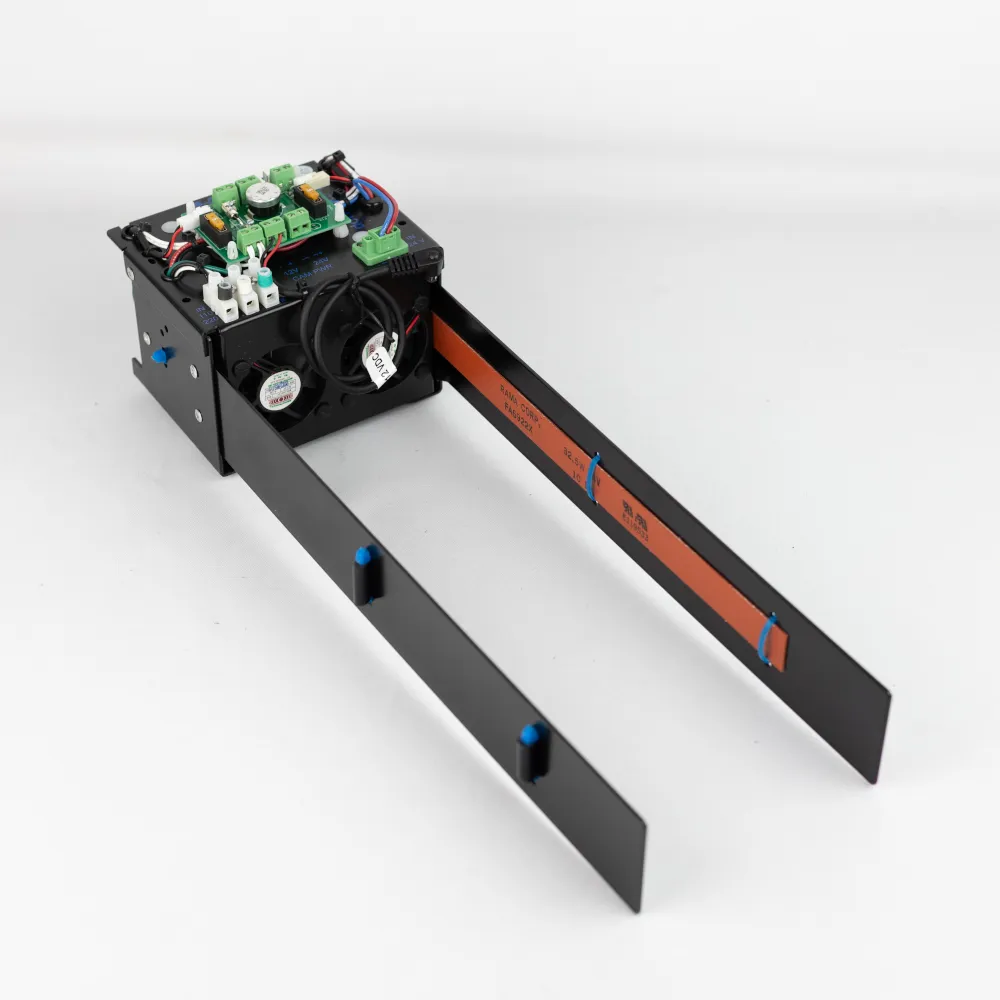

  • 60 Watts internal De Icing Ring
  • Heavy Duty Non Heat Conductive Polycarbonate Shell
  • Supports Internal Storage to Protect Peripherals
  • Protective Lens options
  • IP68-Rated Weatherproofing
  • IK10 Level Impact Protection
  • Stainless Steel Hardware
  • Multi Volt Platform(MVP) For Powering Camera

Dotworkz S-Type™ Ring of Fire™ – Full Camera Housing De-Icing System for Extreme Cold Environments



Full-Housing Heating | Zero Ice Buildup | 24/7 Operational Clarity

The Dotworkz S-Type™ Ring of Fire™ is the industry’s most advanced cold-weather security camera housing—specifically engineered for extreme sub-zero environments, where traditional enclosures fail. This rugged, IP68-rated camera housing features Dotworkz’s patented Ring of Fire™ de-icing system, which actively heats the entire housing, not just the lens, ensuring your camera stays clear, operational, and protected.

Complete Camera De-Icing System



Unlike standard heated camera mounts or basic lens warmers, the Ring of Fire™ delivers full-enclosure thermal protection, eliminating ice, snow, and condensation that can freeze over the lens or internal electronics.

This powerful heating system prevents rime ice from refreezing on the viewing window, keeping your video footage sharp and uninterrupted—even during blizzards, polar conditions, or extended cold snaps.

Engineered for the Harshest Conditions

  • IP68 Waterproof and heavy duty  Housing

  • Full-Housing Heating System – Not just lens warmers

  • Made from Non-Conductive Thermal Plastic – Prevents ice build up  and heat loss

  • Marine-Grade Stainless Steel Hardware – Corrosion-resistant in salt, snow, and chemical exposure

  • Supports Axis®, Hanwha®, Hikvision®, and other fixed camera systems

  • Multi-Volt Platform (MVP) – Compatible with 12V, 24V, or custom solar/off-grid power



Built for These Environments:

  • Arctic and sub-zero climate surveillance

  • Drill rigs and mining sites

  • Border security in snowbound regions

  • Energy and utility infrastructure in cold climates

  • Highway, traffic, and transportation monitoring

  • Ski resorts, mountaintop stations, and airports

Key Benefits:

  • Maintains clear camera visibility in freezing weather

  • Protects internal electronics and power systems

  • Keeps camera operational in -60°F and below

  • Prevents costly downtime, fogging, and re-freezing

  • Trusted by utility providers, transportation agencies, and military installations worldwide

When Other Housings Freeze—Ring of Fire™ Stays On

Whether you’re monitoring remote pipelines, drilling rigs, or high-altitude sites, the S-Type™ Ring of Fire™ is your best choice for extreme cold weather camera housing. Protect your camera system. Keep your vision clear. And stay online—no matter how cold it gets.

Feature

Details

Model Name

S-Type™ Ring of Fire™ Heated Camera Housing

Heating System

Patented Ring of Fire™ full-housing  thermal regulation

Heating Output

60 Watts (high-output de-icing system)

De-Icing Coverage

Heats entire housing: lens window, camera chamber, and internal components

Material

Non-conductive, high-impact thermal plastic

Hardware

Marine-grade stainless steel (corrosion-resistant)

Sealing Rating

IP68 – fully waterproof and dustproof

Impact Resistance

IK10 – high vandal and weather resistance

Operating Temperature Range

-60°F to 167°F (-40°C to 75°C)

Camera Compatibility

Fixed box, Ai , broadcast,  and bullet cameras including:

Accessories

Z-Bracket - PTZ / Static / Fixed Security Camera Housing Mount Bracket

NEW Z-Bracket Rooftop Mount

Parapet Clamp System
  • No Drilling Required: Avoid costly roof penetrations.
  • Supports wall and Corner thicknesses from 2” to 34”.
  • Supports all major camera types and weights including Axis, Hanwha, Bosch, Panasonic and more, including axis cabinets, NEMA boxes, Starlink etc.
  • Simplifies installs and lowers project expenses. No need for exterior access, lifts, or scaffolding.
  • 100% Adjustable and can be field configured
  • Can be secured to top of parapet for added security
  • Replaces corner mounts and J mounts without wobble or unslightly dated aesthetics
  • Long Lasting High Quality Lightweight Powder Coated Aluminum
Angle Correctionn Plate - PTZ / Static / Fixed Security Camera Housing Mount Plate

Angle Correction Plate Bracket

BR-MPM1-AC
  • Works with all Dotworkz Camera Housings.
  • Secures to poles with a minimum of ¾” diameter.
  • Angle Correction Plate can be added to correct the angle of the enclosure up to 10 degrees for non plum poles.
  • Includes antenna mounts for adding additional Omni or yogi antennas.
EZ Lock Pole - PTZ / Static / Fixed Security Camera Housing Mount Bracket

EZ Lock Pole Camera Mount Bracket

BR-MPM1
  • Works with Dotworkz Camera Housings.D2/D3/STYPE/STXL/ BASH/ Other Brands ie PELCO
  • Secures to poles with a minimum of 2” diameter.
  • Angle Correction Plate can be added to correct the angle of the enclosure up to 10 degrees for non plum poles
  • Includes antenna mounts for adding additional Omni or yogi antennas
  • USA Made and Supported
  • Includes Friction Wraps for long term safety and ease of install
  • High Quality Pem Nuts backed
