S-Type™ Custom

Custom Build

Fixed camera Protective Housing Kit
  • Choose Thermal Cooling, Heating or Both
  • Add Wireless & Modems
  • Germanium lens, bullet glass, borosilicate , PC , dome 360
  • Heavy Duty Polycarbonate Shell
  • IP68 100% water tight up to 2 meters
  • IK10 with heavy duty mount options
  • Add Camera/ Audio / deterrents
  • Ballistic Cover Shield Kit Option

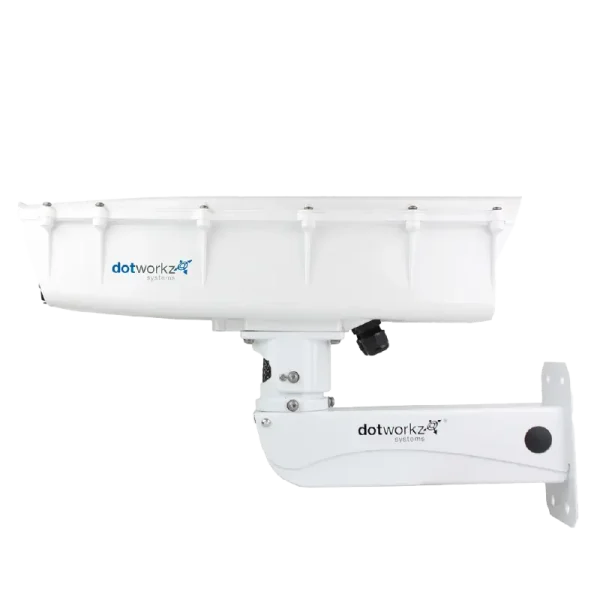

Dotworkz S-Type™ Custom – Rugged Fixed Camera Enclosure for Kits, OEM Builds & Harsh Environments

Your Camera. Your Conditions. Your Configuration.

The Dotworkz S-Type™ Custom is the ultimate outdoor camera housing for fixed surveillance cameras, edge-AI gear, LPR systems, Thermal, and long-lens static setups. Engineered for pro integrators, city surveillance teams, and specialty OEM builds, this enclosure is designed to flex—no matter how complex your deployment gets.

Whether you’re protecting mission-critical optics on a remote pole or securing infrastructure in extreme weather zones, the S-Type Custom gives you the flexibility, durability, and thermal performance that off-the-shelf E-models  can’t match.

Compatible with Today’s Top Fixed Cameras

The S-Type™ supports a wide range of fixed box and bullet cameras, including:

  • Axis Q16 Series (e.g., Q1615-LE Mk III, Q1647-LE, Q1656)

  • Axis P14 Series (e.g., P1448-LE, P1465-LE, P1468-LE)

  • Hanwha Q, X, and P Series Bullets & Boxes

  • Sony Fixed & Thermal Units

  • Hikvision DS-2CD & Thermal Models

  • Avigilon H5A Bullet & Box Cameras

  • Bosch MIC IP and Flexidome Static Cameras

  • Custom thermal imagers, LPR cameras, and AI vision modules

  • Most PoE, fiber, and wireless-enabled camera kits

If your camera uses external lenses, edge processing, or high power—S-Type has the room and protection to support it.

Dotworkz Help you Fully Customizable Products to Fit Your Project

Choose from these performance-enhancing options:

  • CoolDome™ Active Cooling – Thermoelectric 100% sealed cooling system for heat sensitive cameras and locations

  • Ring of Fire™ Lens De-Icing – Prevents ice, snow, and fog from blocking the lens window

  • Heater & Blower – Maintains internal temps and clears condensation in cold, wet conditions

  • Germanium Thermal Glass – For thermal cameras and long-range IR optics

  • Bulletproof  SS Shield – Ballistic-rated protection for high-risk surveillance points

  • Sun Shield Add-On – Blocks direct sunlight and reduces internal heat gain

  • PoE-Ready or Solar-Only (12V) Power Options – Flexible power for permanent or off-grid installs

  • Microphone Kit – Add 2-way audio capabilities for public address or remote listening

  • Custom Mounts – Wall, pole, corner, parapet, or custom arm configurations

  • Finish Options – Marine-rated coatings, low-glare black, or custom color branding

Trusted for Contractor & OEM Surveillance Kits:

  • Mobile surveillance trailers

  • Perimeter detection kits

  • Edge AI video systems

  • Traffic and LPR kits

  • Solar-powered camera units

  • Rapid-deploy security kits

  • Broadcast support housings for fixed long-range feeds

  • Smart city cameras and AI video edge systems

  • Border and perimeter security

  • Traffic and transportation infrastructure

  • Critical utility and energy site surveillance

  • Ports, parks, and public space monitoring

  • Military, rail, or defense applications

Basic Specifications

  • Material: Marine-grade polycarbonate body

  • Rating: IP66 / IP68 Weatherproof & Dustproof

  • Impact Protection: IK10 Vandal Resistant

  • Operating Temperature: -40°F to 167°F (-40°C to 75°C)

  • Mounting Compatibility: Wall, Pole, Parapet, Custom Brackets

  • Power Options: Multi-Volt Platform (12V / 24V / PoE)

  • Weight: Approx. 6-9 lbs depending on buildout

  • Lens Options: Standard, Germanium (thermal), or Ballistic-rated covers

Made in the USA. Built to Order. Backed by the Dotworkz Team.

Let’s design your ideal S-Type Custom to match your gear, your site, and your mission.

Accessories

Ballistic Shield Kit For Static / Fixed Camera Housing

Ballistic Shield Kit - S Type

KT-SHIELD-ST

  • Ballistic Armor Shield for Dotworkz S-Type camera enclosures
  • Shields against small arms fire (up to 9mm / .45 caliber)
  • Protects against blast debris, vandalism, and high-impact events
  • Dual-layer design: Heavy-gauge stainless steel + thermoplastic armor
  • IK10-rated DuraView lens ensures video clarity under attack
  • Supports integration of sensitive cameras & electronics
  • Compatible with most static / fixed camera brands Axis, Hik, Hanwha
  • Includes vandal-resistant closure screws
Z-Bracket - PTZ / Static / Fixed Security Camera Housing Mount Bracket

Z-Bracket Rooftop Mount

Parapet Clamp System

  • No Drilling Required: Avoid costly roof penetrations
  • Supports wall and Corner thicknesses from 2" to 34"
  • Supports all major camera types and weights including Axis, Hanwha, Bosch, Panasonic and more, including axis cabinets, NEMA boxes, Starlink etc
  • Simplifies installs and lowers project expenses. No need for exterior access, lifts, or scaffolding
  • 100% Adjustable and can be field configured
  • Can be secured to top of parapet for added security
  • Replaces corner mounts and J mounts without wobble or unslightly dated aesthetics
  • Long Lasting High Quality Lightweight Powder Coated Aluminum
Germanium Lens Kit 2 In

Germanium Lens Kit

KT-THERM-GE2

  • Works with all S-Type Camera Housings!
  • Provides thermal imaging
  • Mounts securely to all Dotworkz S-Type camera housings
