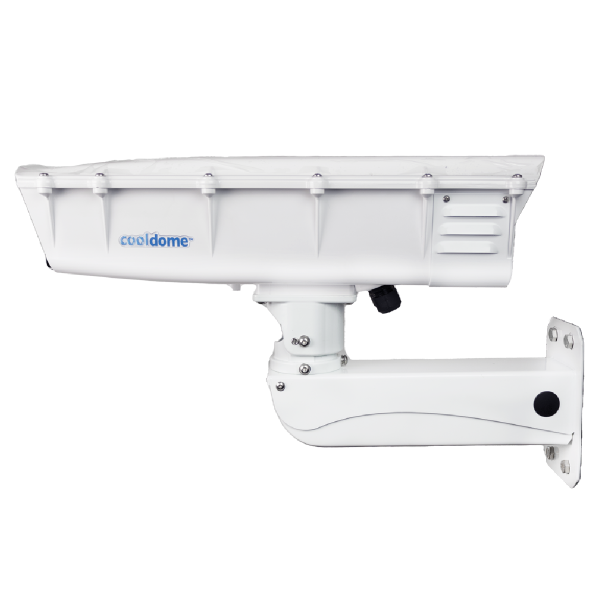

S-Type™ CoolDome™

Heat Protected

Active Cooling Fixed Camera Enclosure
  • Active Temperature Regulation
  • 12VDC/24VDC Options Available
  • Internal Storage Space Also Protects Peripherals
  • Thermally Protective Polycarbonate Reflective Shell
  • Protective Lens
  • IP66-Rated Weather Proofing
  • IK10 Level Impact Protection
  • Proven Solid State Active Temp Controls

Dotworkz S-Type™ CoolDome™ – Actively Cooled Camera Housing for Extreme Heat Protection

Because When Your Camera Goes Down, the Mission Doesn’t Pause.



If you’re installing cameras for sports broadcasting, live analytics, or law enforcement surveillance, you already know: heat is the silent killer.

Whether it’s the blazing sun on a rooftop, the glare of a stadium light rig, or a desert parking lot mid-summer, heat can trigger shutdowns, distorted images, or total camera failure.

The Dotworkz S-Type™ CoolDome™ is built to stop that—cold.

Designed to Keep Cameras Running Where the Heat Hits Hardest



The S-Type CoolDome™ features Dotworkz’s patented active cooling system, which drops internal temperatures by up to 45°F below ambient—protecting your cameras from overheating, fogging, or thermal shutdown.

This isn’t passive venting or shade—it’s a real thermal defense system designed for:

  • Broadcast-grade fixed cameras

  • License plate readers (LPR)

  • Facial recognition or GPU analytics systems

  • Surveillance setups with 24/7 uptime demands

Built for Environments That Don’t Forgive Camera Failure

  • Sports venues & scoreboards

  • Police observation points

  • Downtown traffic intersections

  • Government rooftops

  • Smart city analytics hubs

  • Outdoor live-streaming installations

  • Border or critical infrastructure locations


If your camera’s capturing live feeds, analytics events, or public safety footage, downtime simply isn’t an option. The CoolDome™ is built for these exact missions.

Rugged Build. Smart Cooling. Reliable Video.

  • Active CoolDome™ 3 stage thermal Control  System Proven since 2010

  • IP66-Rated Housing – 100% sealed Blocks heat, dust, water, and sun

  • Non-conductive Thermoplastic Shell – Deflects direct solar load

  • Marine-Grade Hardware – Built for rooftop abuse, not just lab tests

  • Fits Axis, Hanwha, Sony, and other full-size fixed cameras

  • Internal room for PoE injectors, SD storage, radios, and power supplies



Why Installers Choose CoolDome™:

  • Stops thermal shutdowns / in high-heat zones

  • Eliminates grainy images due to heat and heat blur during mid-day recordings

  • Keeps analytics systems operating in hot, sealed areas

  • Extends the life of sensitive gear deployed outdoors

  • Saves on emergency service calls or mid-game camera failures

**If your cameras power AI analytics, livestreams, or public safety footage—**you need more than a weatherproof - e model box. You need a housing that actively cools, shields, and protects your investment.

Best option for heat protection over 20 years  S-Type™ CoolDome™ does—built in the USA, trusted worldwide.

Feature

Details

Model

S-Type™ CoolDome™

Cooling System

Dotworkz CoolDome™ Active Cooling Technology

Cooling Method

Solid-state thermoelectric cooler with integrated blower

Temperature Reduction

Cools internal temperature up to 45°F (25°C) below ambient

Material

Non-conductive, thermal-resistant polycarbonate shell

Hardware

Marine-grade stainless steel (anti-corrosion, IP-rated fasteners)

Sealing Rating

IP66 – Weatherproof and dustproof enclosure

Impact Protection

IK10 – High-impact, vandal-resistant construction

Operating Temperature Range

-20°F to 167°F (-29°C to 75°C)

Power Input

Multi Volt Platform (MVP) – Accepts 12V DC or 24V DC (AC adapter optional)

Power Consumption

~60 Watts average (active cooling system)

Camera Compatibility

  • Hanwha Q / X / P bullet or box cameras

  • Sony, Hikvision, i-PRO, Bosch, Verkada, Z Cam , Panasonic , ai, Machine and Avigilon fixed cameras

  • Analytics systems, LPR, facial recognition modules |

    | all Mounting Options | Wall, pole, parapet, corner, or custom brackets |

    | Internal Space | Room for camera + power supplies, PoE injectors, small edge recorders, or radios |



Included with Every S-Type™ CoolDome™ Unit:

  • Pre-installed CoolDome™ cooling module and PS

  • Fully sealed IP66 housing with cable glands

  • Camera bracket (based on camera model)

  • Installation & wiring guide

  • 1-year warranty

  • US-based tech support

Accessories

Z-Bracket - PTZ / Static / Fixed Security Camera Housing Mount Bracket

NEW Z-Bracket Rooftop Mount

Parapet Clamp System
  • No Drilling Required: Avoid costly roof penetrations.
  • Supports wall and Corner thicknesses from 2” to 34”.
  • Supports all major camera types and weights including Axis, Hanwha, Bosch, Panasonic and more, including axis cabinets, NEMA boxes, Starlink etc.
  • Simplifies installs and lowers project expenses. No need for exterior access, lifts, or scaffolding.
  • 100% Adjustable and can be field configured
  • Can be secured to top of parapet for added security
  • Replaces corner mounts and J mounts without wobble or unslightly dated aesthetics
  • Long Lasting High Quality Lightweight Powder Coated Aluminum
Angle Correctionn Plate - PTZ / Static / Fixed Security Camera Housing Mount Plate

Angle Correction Plate Bracket

BR-MPM1-AC
  • Works with all Dotworkz Camera Housings.
  • Secures to poles with a minimum of ¾” diameter.
  • Angle Correction Plate can be added to correct the angle of the enclosure up to 10 degrees for non plum poles.
  • Includes antenna mounts for adding additional Omni or yogi antennas.
EZ Lock Pole - PTZ / Static / Fixed Security Camera Housing Mount Bracket

EZ Lock Pole Camera Mount Bracket

BR-MPM1
  • Works with Dotworkz Camera Housings.D2/D3/STYPE/STXL/ BASH/ Other Brands ie PELCO
  • Secures to poles with a minimum of 2” diameter.
  • Angle Correction Plate can be added to correct the angle of the enclosure up to 10 degrees for non plum poles
  • Includes antenna mounts for adding additional Omni or yogi antennas
  • USA Made and Supported
  • Includes Friction Wraps for long term safety and ease of install
  • High Quality Pem Nuts backed
