D3 Camera Enclosure

Large PTZ Solution

Protective Broadcast and Security Solution
  • 40% More Internal Room then our popular D2
  • Heavy Duty Non Heat Conductive Polycarbonate Shell
  • Supports Internal Storage to Protect Peripherals
  • Protective Lens Bubble Size Options External Or Internal
  • IP66 100% Water Tight, Saltwater Ready
  • IK10 Level Impact Protection Thermoplastic Non-Conductive
  • Stainless Steel Hardware, IP68 Cable Glands
  • USA Made & Supported

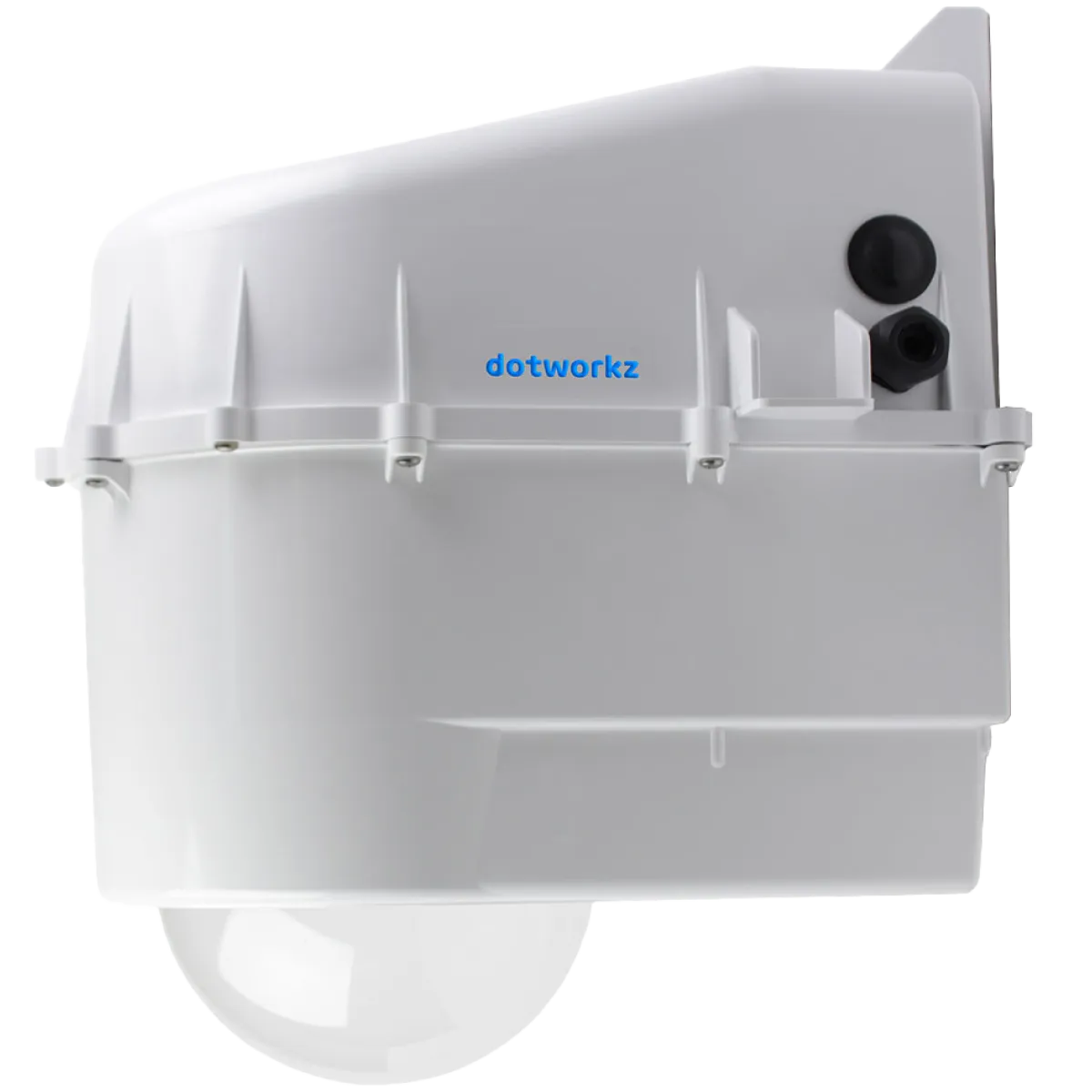

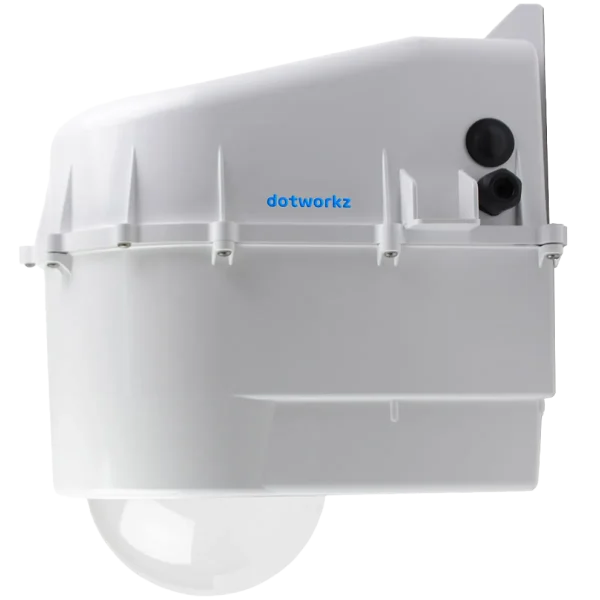

Dotworkz D3 Base™Enclosure  – Oversized Outdoor Camera Enclosure Built for PTZ, AI, Broadcast & Multi-Sensor Systems

Engineered for camera architects and camera systems security consultants in mind,  the Dotworkz D3 Base is the ideal starting point for building next-gen outdoor surveillance and broadcast camera platforms. Offering 40% more internal space than the popular D2 housing, the D3 is the go-to choice for PTZ, multi-sensor, AI vision, thermal, and live video systems that demand extra room and long-term protection.

This oversized enclosure allows for expanded internal gear: from multiple PoE switches and HD routers to edge NVRs, UPS batteries, and AI compute GPU modules. Whether you’re designing for smart cities, mobile police security, perimeter protection, or HD broadcast streaming, the D3 Base gives your system breathing room—and future expansion flexibility.

Constructed from rugged, non-conductive thermal polycarbonate and sealed to IP66 and IK10 standards, the D3 Base protects sensitive electronics from heat, rain, impact, insects, and debris. It’s built for deployment in transportation zones, remote environments, rooftops, and any location where failure is not an option.

Key Highlights:

  • PTZ, Multi-Sensor, AI & Broadcast Ready – Supports a wide range of Axis, Hanwha, Sony, and other camera models

  •  Expanded HD Gear Space – Fit routers, PoE switches, AI processors, SSDs, and more with ease

  •  IP66 Waterproof + IK10 Vandal Rated – Keeps everything inside protected from harsh elements

  •  Modular Power & Cooling – Add-on Heater, Blower, or CoolDome modules for climate-specific installs

  • Built-In Flexibility – Easily adapts for city surveillance, critical infrastructure, and smart perimeter security

  • Multiple Lens Bubble Options – Choose standard, half-sphere, or extended for fit and function

Recommended for Security Consultants & System Designers:

  • Smart City camera nodes with onboard AI or wireless uplinks

  • Broadcast & PTZ systems needing extra cooling and cabling room

  • Surveillance builds where reliability and interior flexibility are key

  • Projects requiring robust Axis camera housing with power expansion

Bigger Inside. Smarter Outside.

The Dotworkz D3 Base is more than just a camera box—it’s a scalable housing platform for advanced security, AI, and broadcast builds. Designed and manufactured in the USA, it’s trusted by integrators, municipalities, and defense contractors who require more out of every enclosure.

Dotworkz D3 Base™ – Key Specifications

  • Internal Volume: 40% larger than D2 housing

  • Material: Non-conductive marine-grade thermal polycarbonate

    • IK10 Impact Resistant

      Protection Rating:

      IP66 Weatherproof

  • Camera Compatibility:

    • PTZ cameras (Axis, Hanwha, Sony, etc.)

    • Multi-sensor cameras

    • AI edge vision systems

    • Thermal cameras

    • Broadcast and HD streaming systems

    • NEMA 4X

  • Mounting: Pole, wall, corner, parapet, or custom brackets

  • Interior Clearance: Supports internal PoE switches, wireless routers, edge NVRs, SSDs, and cooling modules

  • Lens Options: Standard, half-sphere, or extended bubble

  • Made in: USA (Santee, California)

  • Add-On Modules when ordering : CoolDome™, Heater Blower, Ring of Fire™, PoE MVP platform, microphone kit

  • Dimensions (approx.):

  • Weight (empty): ~7.8 lbs (3.5 kg)

  • Color: Matte gray or white (custom colors available)

Dotworkz D3 Base™ is a rugged, oversized outdoor camera enclosure.

Start with the D3 Base. Build your system from the inside out.

Accessories

Z-Bracket - PTZ / Static / Fixed Security Camera Housing Mount Bracket

NEW Z-Bracket Rooftop Mount

Parapet Clamp System
  • No Drilling Required: Avoid costly roof penetrations.
  • Supports wall and Corner thicknesses from 2” to 34”.
  • Supports all major camera types and weights including Axis, Hanwha, Bosch, Panasonic and more, including axis cabinets, NEMA boxes, Starlink etc.
  • Simplifies installs and lowers project expenses. No need for exterior access, lifts, or scaffolding.
  • 100% Adjustable and can be field configured
  • Can be secured to top of parapet for added security
  • Replaces corner mounts and J mounts without wobble or unslightly dated aesthetics
  • Long Lasting High Quality Lightweight Powder Coated Aluminum
Angle Correctionn Plate - PTZ / Static / Fixed Security Camera Housing Mount Plate

Angle Correction Plate Bracket

BR-MPM1-AC
  • Works with all Dotworkz Camera Housings.
  • Secures to poles with a minimum of ¾” diameter.
  • Angle Correction Plate can be added to correct the angle of the enclosure up to 10 degrees for non plum poles.
  • Includes antenna mounts for adding additional Omni or yogi antennas.
EZ Lock Pole - PTZ / Static / Fixed Security Camera Housing Mount Bracket

EZ Lock Pole Camera Mount Bracket

BR-MPM1
  • Works with Dotworkz Camera Housings.D2/D3/STYPE/STXL/ BASH/ Other Brands ie PELCO
  • Secures to poles with a minimum of 2” diameter.
  • Angle Correction Plate can be added to correct the angle of the enclosure up to 10 degrees for non plum poles
  • Includes antenna mounts for adding additional Omni or yogi antennas
  • USA Made and Supported
  • Includes Friction Wraps for long term safety and ease of install
  • High Quality Pem Nuts backed
