D2™ Camera Housing

Base Model

Protective Camera Solution
  • Non Heat Conductive Polycarbonate Shell Rust Proof

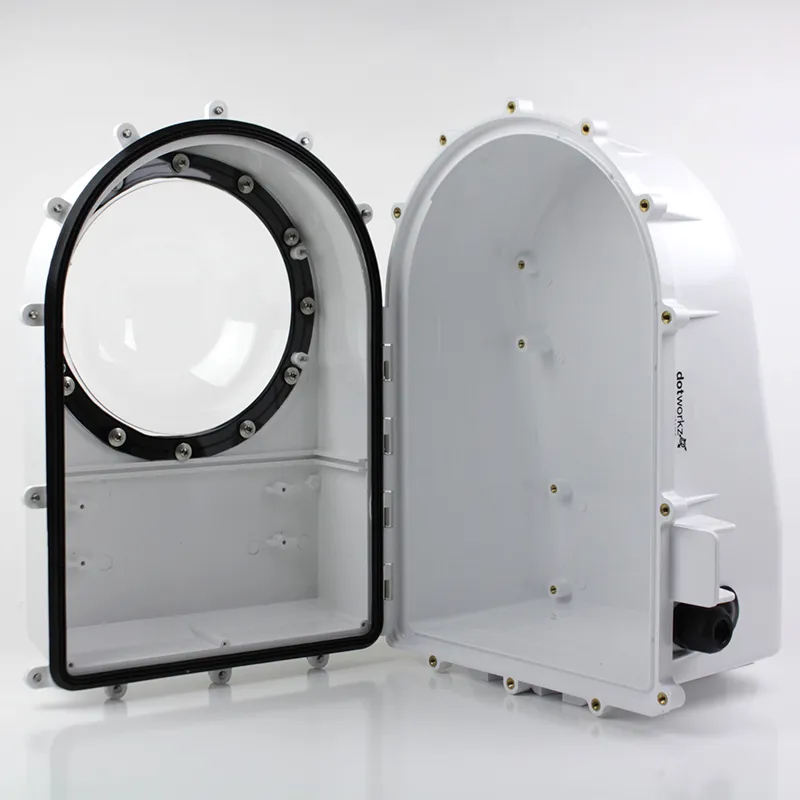

  • Supports Internal Storage to Protect Peripherals

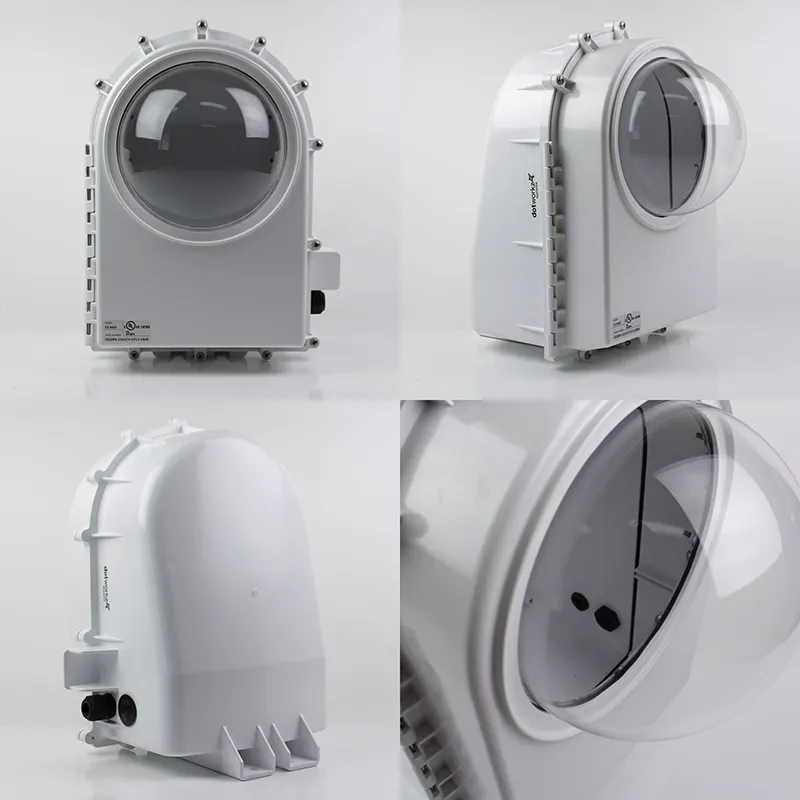

  • Protective Lens Bubble options : Ultra clear, larger over size, no camera blank out,
  • IP68 100% Water Tight Up To 2 Meters
  • IK10 Level Impact Protection even in cold temps
  • Stainless Steel Hardware

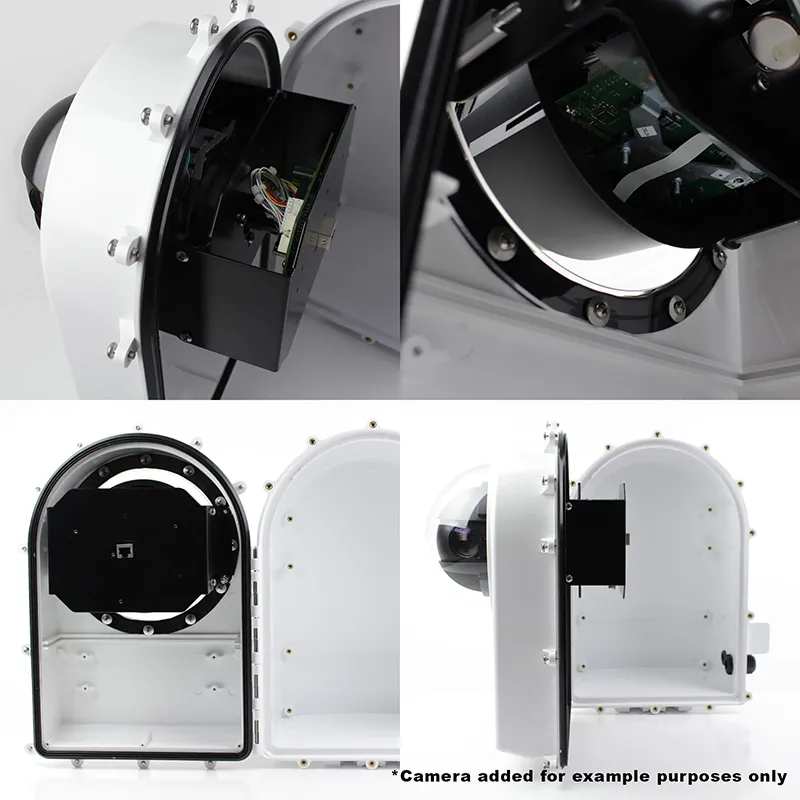

  • Multi Camera Compatibility works with all brands
  • USA Made & Supported

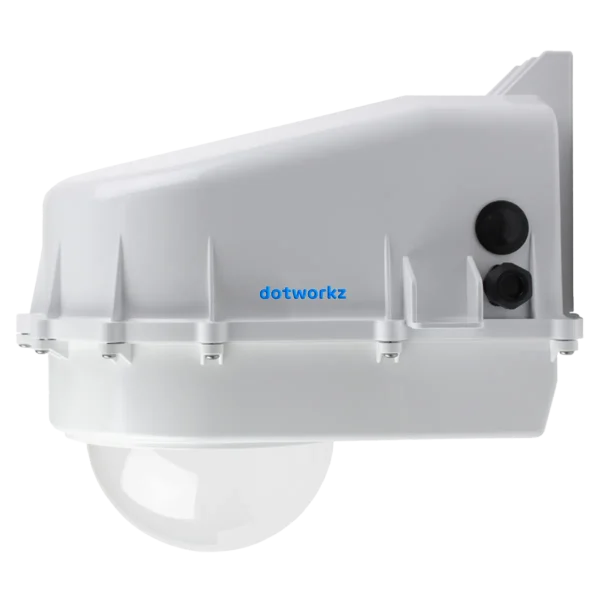

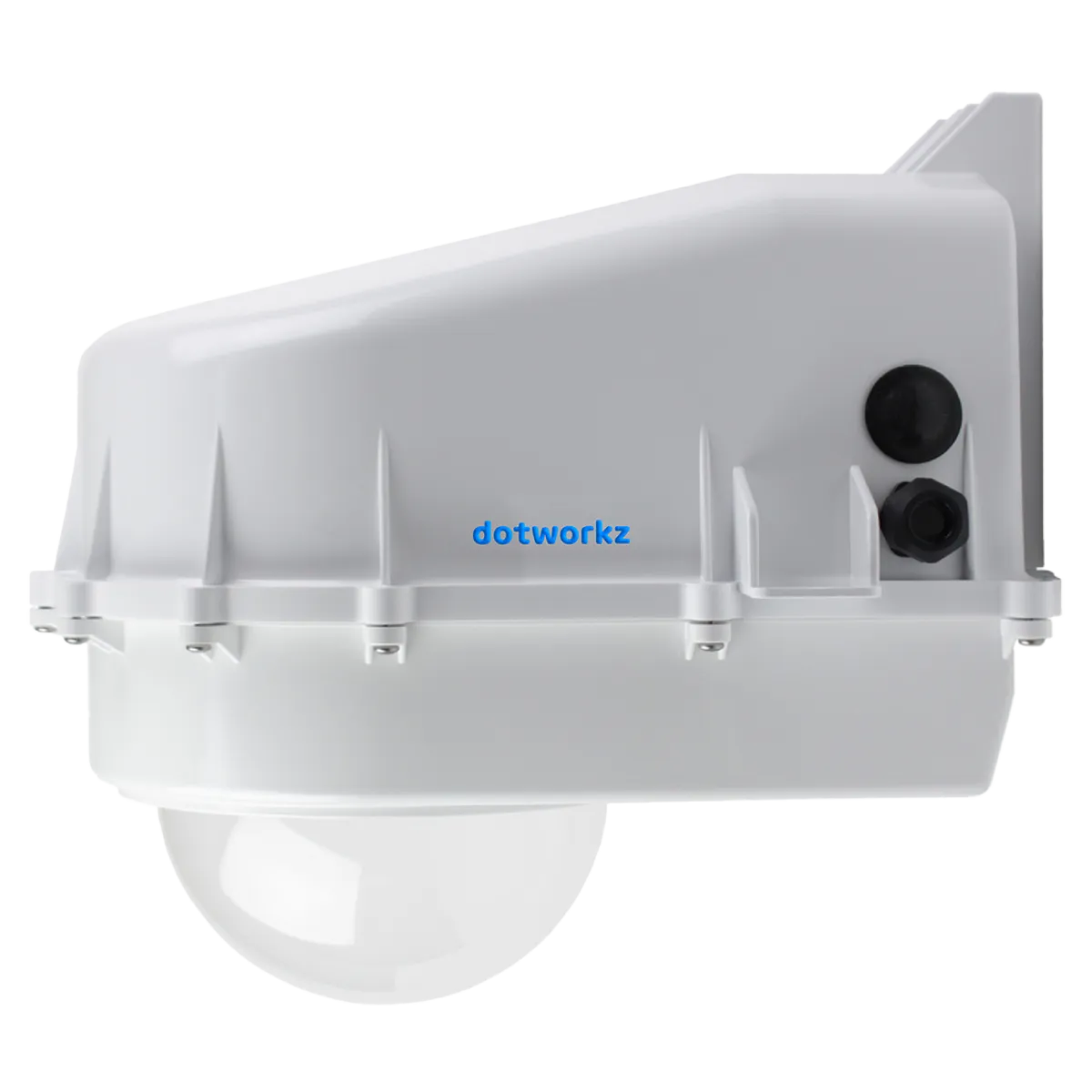

Dotworkz D2 Base – Rugged Outdoor Camera Enclosure Built for Extreme Protection

The Dotworkz D2 Base is a trusted, field-tested IP68 outdoor camera housing designed to protect today’s most advanced PTZ, AI, and broadcast cameras in even the most demanding environments. Engineered from non-conductive UV , Fire, Dotworkz formulated heavy duty thermal polycarbonate, the D2 Base offers 100% watertight sealing, IK10 impact protection, and full resistance to rust, UV, chemicals, fire, extreme cold and dust—making it a smart alternative to -E models,  NEMA boxes or vulnerable wall-mounted arms.

This versatile enclosure is built for camera professionals who demand more:

  • Perfect fit for Axis IP cameras such as Q61, P56, and V59 series PTZs

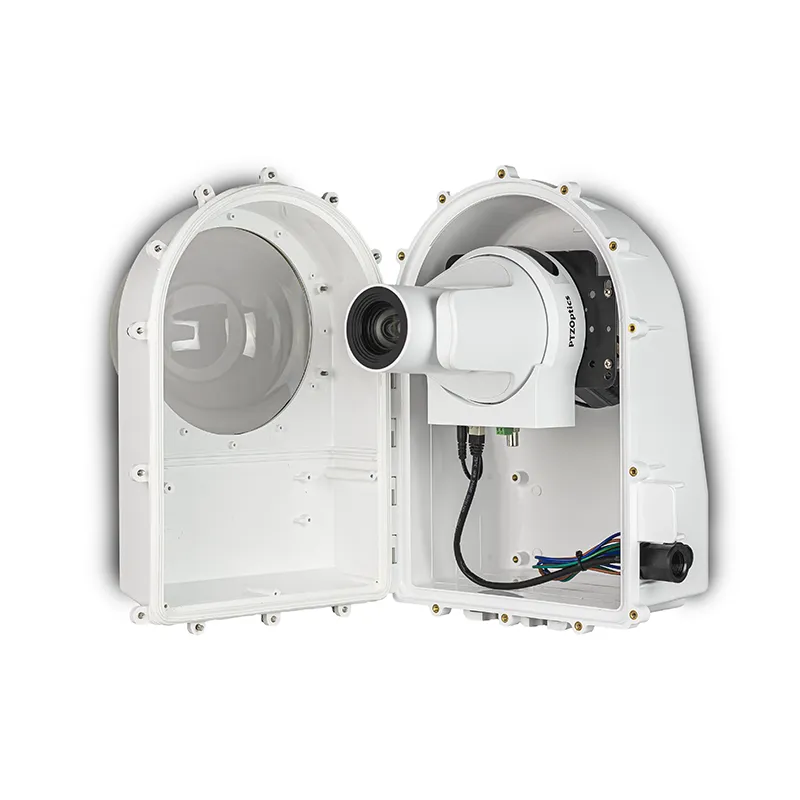

  • Seamless protection for BirdDog PTZ, PTZOptics 4K, and Panasonic broadcast cameras

  • Supports AI vision cameras, mini domes, and multi-sensor surveillance units

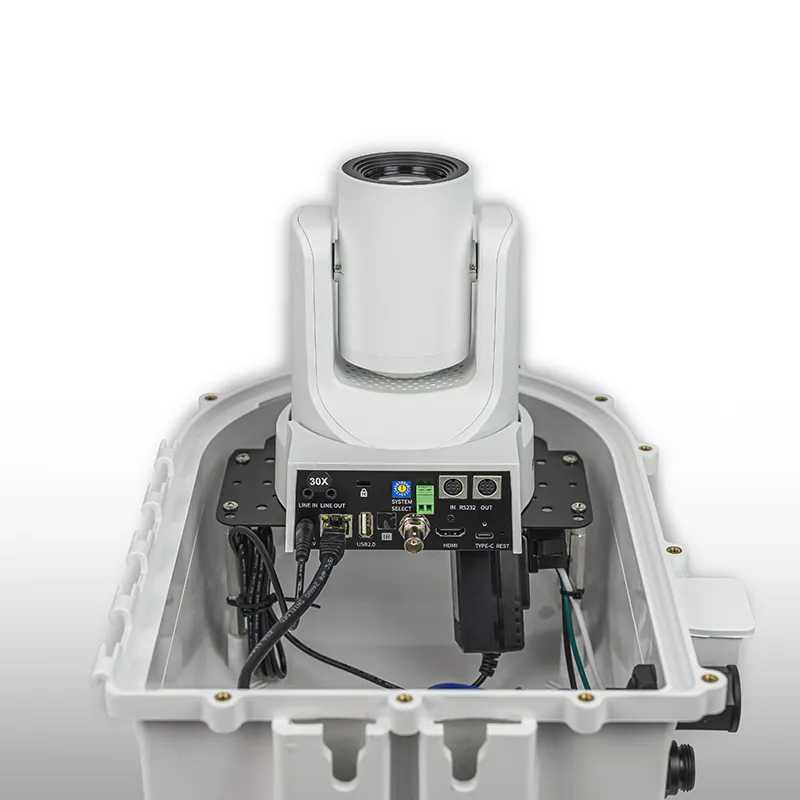

  • Internal space for mounting modems, Starlink mini , audio kits, routers, PoE switches, and cellular uplinks

  • Optional lens bubbles to match your exact camera setup or FOV

  • Eliminates the need for expensive branded wall brackets or separate weatherproof boxes



Whether you’re deploying cameras for public safety, remote jobsite monitoring, sports broadcasting, smart cities, or construction sites, the proven D2 camera housing  provides a streamlined, durable, and professional-grade solution for professional camera protection.



sample of Axis cabinet and mounting accessory models that the Dotworkz D2 Base commonly replaces:

Why Integrators Are Choosing the Dotworkz D2 Base Over Traditional Axis Cabinets

The Dotworkz D2 Base is more than just a rugged camera housing—it’s a smart replacement for multiple Axis accessories and NEMA-style boxes. If you’re currently using Axis models like the T94R01P, T98A18-VE, or T91G61, it’s time to simplify your installs and add serious protection.

  • T94R01P

  • T98A18-VE

  • T91G61

  • T94M01L

  • T98A15-VE

  • T94V01C

  • T91H61

Built from non-heat-conductive polycarbonate and trusted in harsh environments for over 20 years, the D2 Base is a cost-effective, USA-made upgrade for nearly any outdoor PTZ, broadcast, AI, or smart city install.

Built by Dotworkz, a 27-year leader in surveillance camera enclosures and broadcast camera protection systems

Accessories

Z-Bracket - PTZ / Static / Fixed Security Camera Housing Mount Bracket

NEW Z-Bracket Rooftop Mount

Parapet Clamp System
  • No Drilling Required: Avoid costly roof penetrations.
  • Supports wall and Corner thicknesses from 2” to 34”.
  • Supports all major camera types and weights including Axis, Hanwha, Bosch, Panasonic and more, including axis cabinets, NEMA boxes, Starlink etc.
  • Simplifies installs and lowers project expenses. No need for exterior access, lifts, or scaffolding.
  • 100% Adjustable and can be field configured
  • Can be secured to top of parapet for added security
  • Replaces corner mounts and J mounts without wobble or unslightly dated aesthetics
  • Long Lasting High Quality Lightweight Powder Coated Aluminum
Angle Correctionn Plate - PTZ / Static / Fixed Security Camera Housing Mount Plate

Angle Correction Plate Bracket

BR-MPM1-AC
  • Works with all Dotworkz Camera Housings.
  • Secures to poles with a minimum of ¾” diameter.
  • Angle Correction Plate can be added to correct the angle of the enclosure up to 10 degrees for non plum poles.
  • Includes antenna mounts for adding additional Omni or yogi antennas.
EZ Lock Pole - PTZ / Static / Fixed Security Camera Housing Mount Bracket

EZ Lock Pole Camera Mount Bracket

BR-MPM1
  • Works with Dotworkz Camera Housings.D2/D3/STYPE/STXL/ BASH/ Other Brands ie PELCO
  • Secures to poles with a minimum of 2” diameter.
  • Angle Correction Plate can be added to correct the angle of the enclosure up to 10 degrees for non plum poles
  • Includes antenna mounts for adding additional Omni or yogi antennas
  • USA Made and Supported
  • Includes Friction Wraps for long term safety and ease of install
  • High Quality Pem Nuts backed
