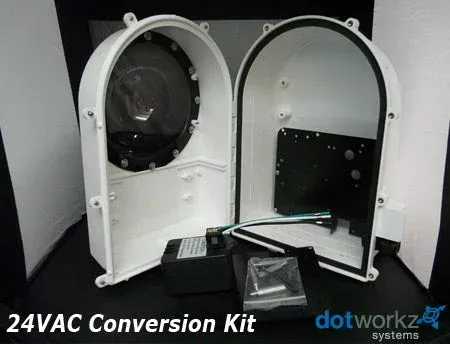

Dotworkz 24VAC power conversion kit assists the installation process and hardware needed to power traditional analog CCTV cameras or the newer Sony PTZ models that require 24VAC. Engineered to step down the standard 110 VAC power coming into our MVP or Base model equipped D2 or D3 housings to 24VAC.The Kit includes our BR-ACC1 bracket, hardware and cabling needed to power 24VAC PTZ cameras. Often PoE or HPoE powered cameras can cause install problems if PoE is not needed or if the cameras are to be installed in conjunction with wireless configurations such as: LTE 3G or 4G, fiber, extended long distance Ethernet, lightning suppressed cabling, or Mesh radios.The Dotworkz 24 VAC powering solution allow installer/integrator to take a traditional approach to "hardwiring" in reliable stepped down low voltage right to the camera within the security of the airtight / watertight D -Series housings.
- SNCER520, SNCER550 and SNCER580
- SNCEP520, SNCEP550 and SNCEP580
- SNCRS44N and SNCRS46N
Input: 120VAC 60 Hz 48W
Output: 24VAC 1.67MP(40VA)3-PIN with ground
Ideal For:
Surveillance systems running on 24VAC infrastructure
Municipal, transportation, and utility security installations
Integrators looking for simplified power management
Outdoor and remote camera deployments
